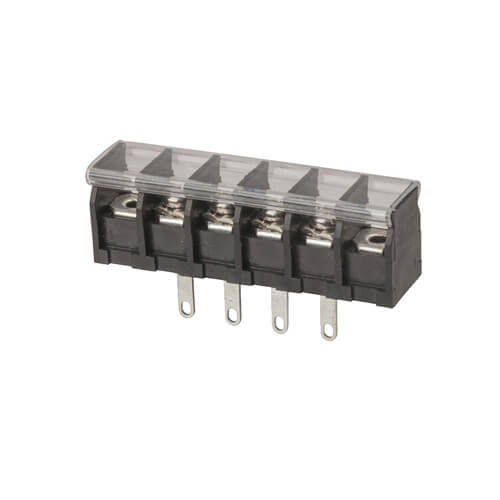

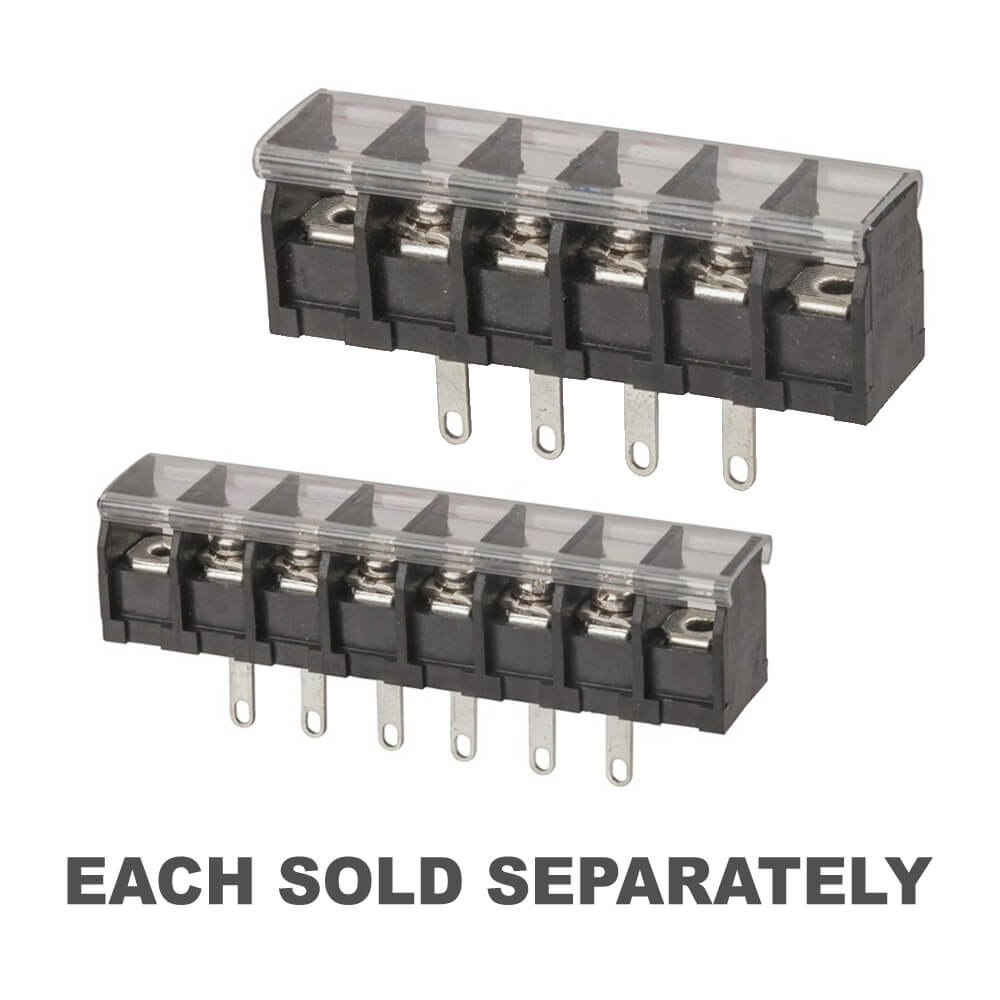

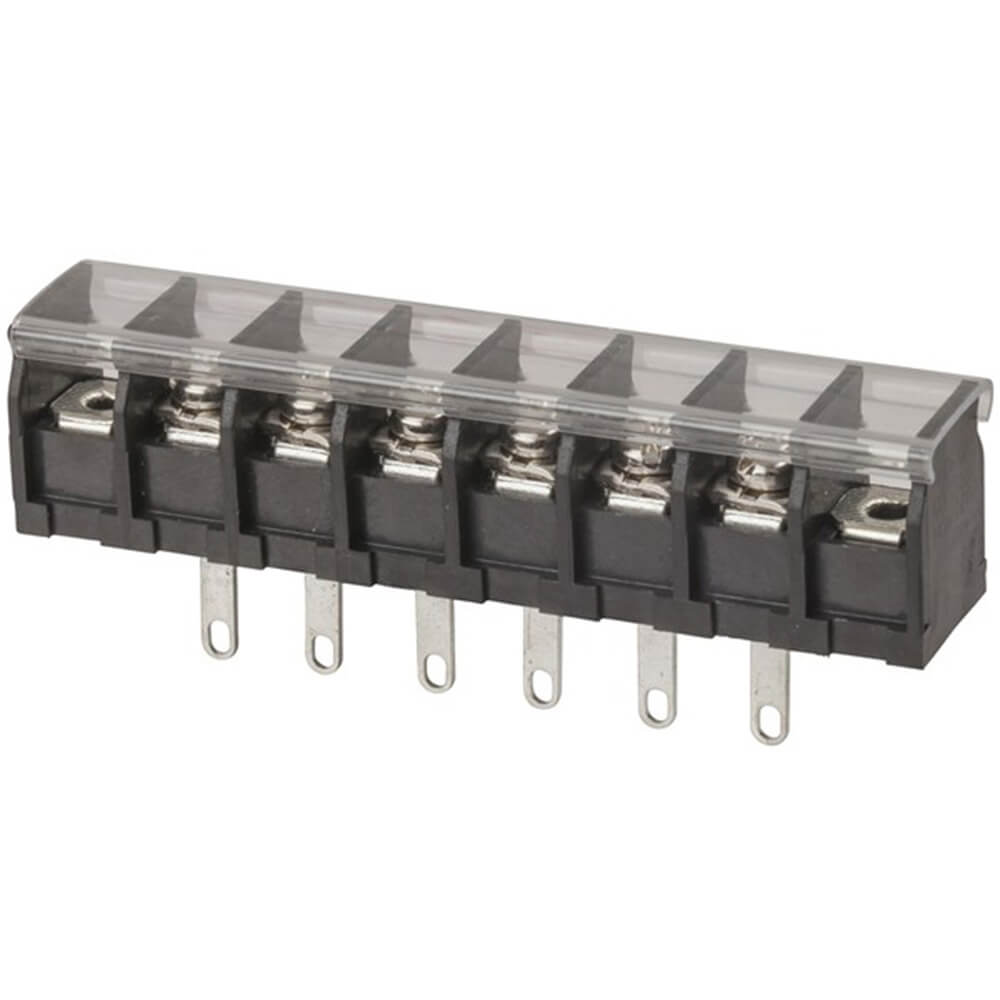

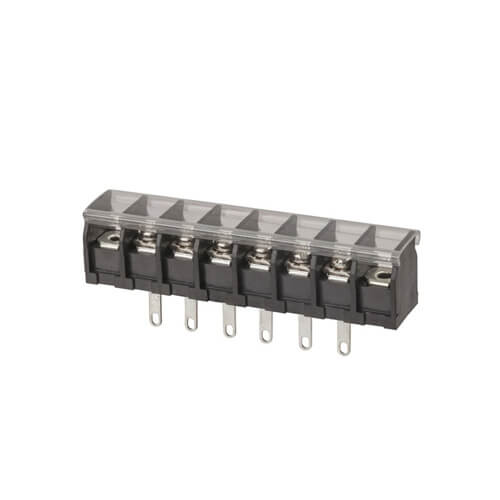

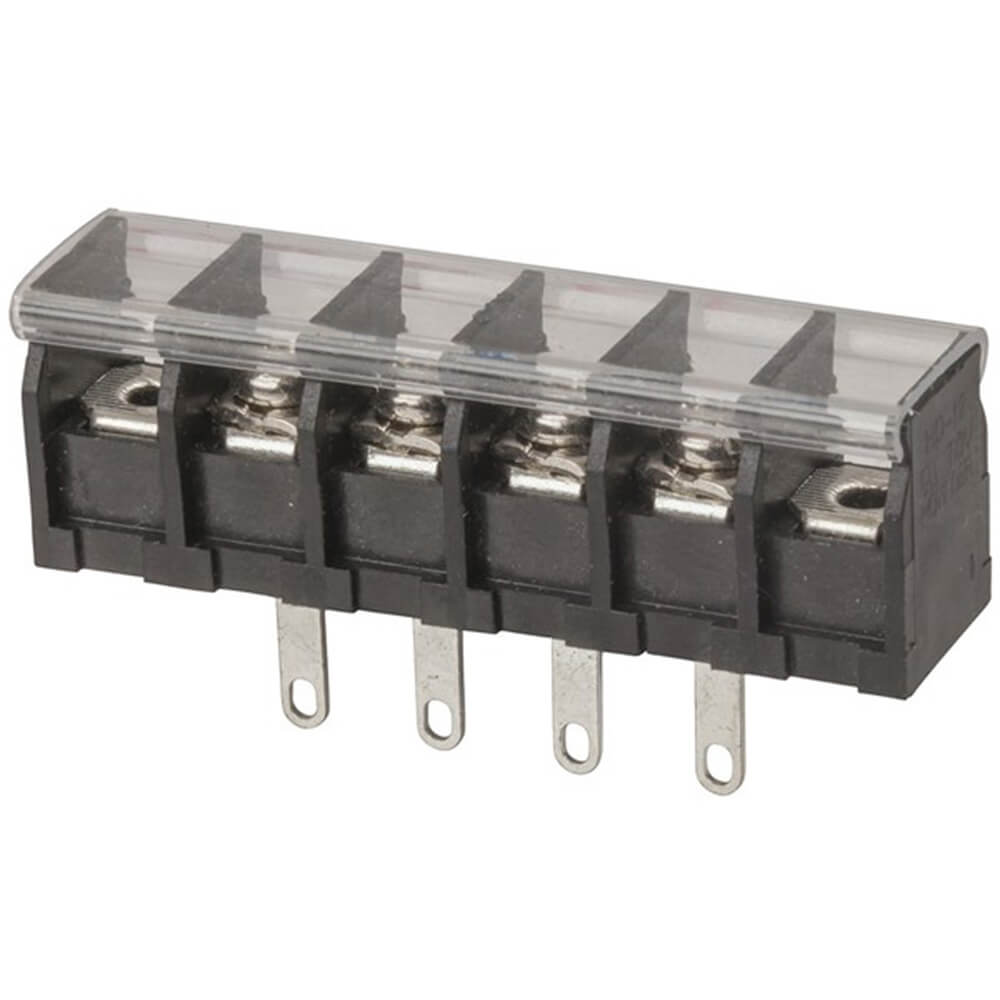

Terminal Barrier Panel with Clear Cover

Barrier Material: Thermoplastic (UL=94V-0), Black

Terminals: Tint Plated Brass (Standard)

Screws: Nickel Plated Steel

Wire Range AWG: 12-22 STR

Cover Material: PC

Insulation withstands voltage AC 2000V/Min

Pole HD-12-? P HD-12-? PH

A (Px9.5)+1.4 (P+2)*9.5+1.4

B (P-1)*9.5 (P+1)*9.5

Product Specifications

• AC current rating : 25A
• Mounting Method : Panel
• Packaged Volume : 0.03l
• Packaged Weight : 0.02kg
• Packaged Length : 5.8cm
• Packaged Width : 1.5cm
• Packaged Height : 3cm
• Type : Screw Terminal
• Device : Terminal
• Attachment Method : Solder Tag
• Number of Contacts : 4pc
• Terminal Spacing : 9.5mm
• Insulation Dielectric Voltage Rating : 2V
• Insulation Resistance : 500MΩ
